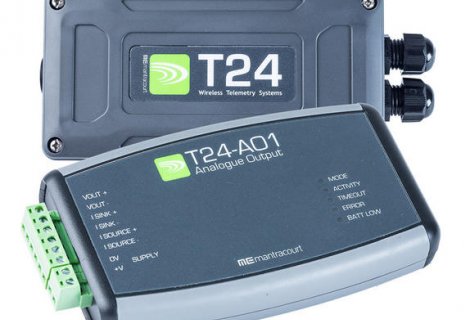

T24-AO1 - Bezprzewodowy odbiornik dla wyjścia analogowego

The Wireless Receiver with Analogue Output provides a configurable analog output for a single T24 wireless transmitter module. The output can be selected from the pre-calibrated voltage and current ranges of 0-10 Volts, ±10 Volts, 0-5 Volts, ±5 Volts, 0-20 mA and 4-20 mA (All current outputs both sink and source).

The LED indictors on the T24-AO1 provide status indication of the condition of the radio link, remote battery life and remote sensor status.

These wireless receivers with analogue output modules are configured and scaled using free T24 Toolkit software which runs on a PC connected to a T24 base station.

The T24-AO1i industrial version is housed in an IP67 NEMA4 sealed enclosure and offers a digital input which allows for zeroing of the incoming data value. This version also offers extended range over the desktop version.

The licence free 2.4 GHz direct sequence spread spectrum (DSSS) radio technology offers high integrity, error free communications which can co-exist with other wireless technologies such as Wi-Fi, Bluetooth® and Zigbee®. FCC, ETSI and IC approvals.



Dokumentacja techniczna
